OpenHamClock

The real steps used to get OpenHamClock running as a dedicated local kiosk display — see the HamClock to OpenHamClock writeup for the backstory on why.

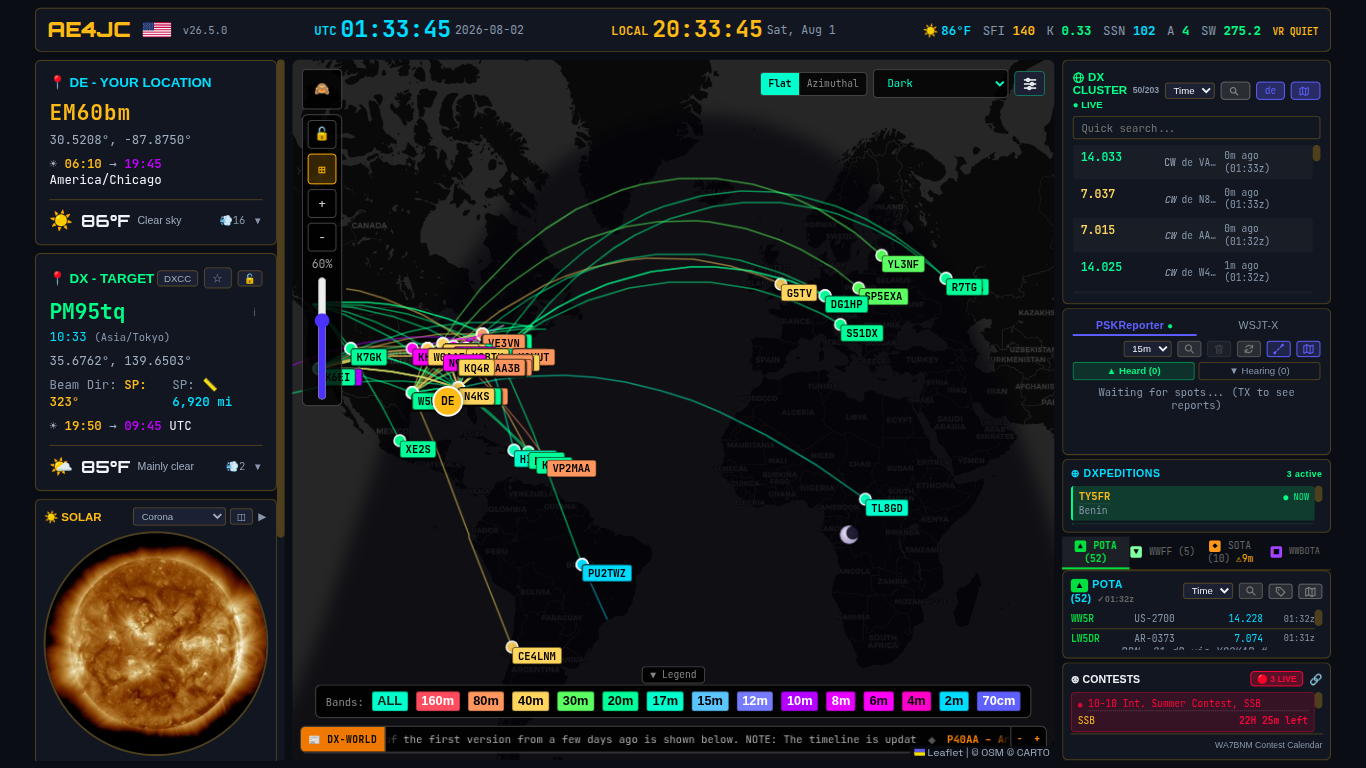

OpenHamClock running fullscreen as a dedicated kiosk display on a 2011 Dell Latitude E6420

The end result: a repurposed 2011 Latitude booting straight into this, unattended, after a power cut.

Here’s the original X post on setting it up, along with the discussion that followed: https://x.com/mwfoutch1/status/2038314358200046059

Prerequisite: Linux

This assumes a working Linux install already in place. Starting from an old or underpowered laptop instead? See the Linux Setup guide first.

Prerequisite: Node.js 18+ and Git

The setup script checks for both and stops if either is missing. A fresh Mint/Ubuntu install has neither, so install them first:

curl -fsSL https://deb.nodesource.com/setup_22.x | sudo -E bash - && sudo apt-get install -y nodejs
sudo apt install -y git

Verify before continuing:

node --version   # v18 or higher
git --version

Install (Linux, systemd service)

curl -fsSL https://raw.githubusercontent.com/accius/openhamclock/main/scripts/setup-linux.sh | bash -s -- --service
nano ~/openhamclock/.env

The installer creates .env for you, so there’s no need to copy anything — just edit it. .env.example does sit alongside it and is worth a look regardless: it’s ~12KB of documented settings covering DX cluster sources, satellite TLE feeds, logger integrations, and units. Set your CALLSIGN and LOCATOR, then:

sudo systemctl restart openhamclock

Confirm it took:

grep -E '^(CALLSIGN|LOCATOR)' ~/openhamclock/.env
curl -sf http://localhost:3000/api/health && echo HEALTH_OK

Open http://localhost:3000 in a browser and hit F11 for full-screen — or run npm run electron for a native app feel instead of a browser tab.

Full Kiosk Mode (auto-start on boot)

The --service flag above auto-starts the server on boot. It does not auto-start the display — you’d still boot to a desktop and have to open a browser by hand.

Upstream does ship a real kiosk mode, but only for Raspberry Pi: setup-pi.sh --kiosk. The x86 setup-linux.sh accepts only --service and --help, and the Pi script targets port 3001 rather than the 3000 the Linux service uses. So on a normal PC or laptop you build this layer yourself.

These steps are for Linux Mint 22.3 with Cinnamon on X11, but adapt cleanly to most desktops.

1. Install the pieces

sudo apt install -y chromium unclutter

Chromium rather than Firefox on purpose: --disable-session-crashed-bubble and --noerrdialogs suppress the “Restore session?” prompt after an unclean shutdown. A shack display gets power-cycled, and you don’t want to come out to a dialog box sitting on top of your clock.

2. Create the launcher

cat > ~/openhamclock/kiosk.sh <<'EOF'
#!/bin/bash
URL="http://localhost:3000"
HEALTH="$URL/api/health"

# The desktop comes up before the Node server is ready on a cold boot.
# Wait for the server, or chromium lands on a connection-refused page.
for i in $(seq 1 60); do
    curl -sf "$HEALTH" >/dev/null 2>&1 && break
    sleep 1
done

BROWSER="$(command -v chromium || command -v chromium-browser)"
if [ -z "$BROWSER" ]; then
    echo "kiosk.sh: no chromium binary found" >&2
    exit 1
fi

FLAGS="--kiosk --noerrdialogs --disable-infobars --disable-session-crashed-bubble"
FLAGS="$FLAGS --disable-features=TranslateUI --check-for-update-interval=31536000"
FLAGS="$FLAGS --user-data-dir=$HOME/.config/openhamclock-kiosk"

if [ "$XDG_SESSION_TYPE" = "wayland" ]; then
    exec "$BROWSER" $FLAGS --ozone-platform=wayland "$URL"
else
    export DISPLAY="${DISPLAY:-:0}"
    xset s off
    xset -dpms
    xset s noblank
    command -v unclutter >/dev/null && unclutter -idle 1 -root &
    exec "$BROWSER" $FLAGS "$URL"
fi
EOF
chmod +x ~/openhamclock/kiosk.sh
bash -n ~/openhamclock/kiosk.sh && echo SYNTAX_OK

SYNTAX_OK confirms the whole file pasted intact. A long block like this can silently truncate mid-paste, and a half-written script fails in confusing ways later — check it now.

The wait loop is the part that matters. On boot the desktop session starts well before the Node server is ready, and without it Chromium launches into a connection-refused page and sits there forever.

3. Launch it on login

mkdir -p ~/.config/autostart
cat > ~/.config/autostart/openhamclock-kiosk.desktop <<EOF
[Desktop Entry]
Type=Application
Name=OpenHamClock Kiosk
Exec=$HOME/openhamclock/kiosk.sh
Terminal=false
X-GNOME-Autostart-enabled=true
EOF
cat ~/.config/autostart/openhamclock-kiosk.desktop

Confirm Exec= shows a real path and not a literal $HOME — .desktop files don’t expand variables at run time.

4. Autologin

Without this the machine stops at a login prompt after a power cycle and the display never comes up. Weigh that against the obvious tradeoff: anyone with physical access to the machine is straight into that account.

Easiest path is the GUI — Menu → Login Window → Users → Automatic login. Or write a drop-in directly:

sudo tee /etc/lightdm/lightdm.conf.d/99-autologin.conf >/dev/null <<'EOF'
[Seat:*]
autologin-user=YOUR_USERNAME
autologin-user-timeout=0
EOF

A drop-in rather than editing lightdm.conf keeps it reversible — delete the one file to undo it.

5. Stop the screen going dark

The xset calls in the launcher only cover the X server. Cinnamon’s own screensaver and power management will still blank and lock the display out from under it:

gsettings set org.cinnamon.desktop.session idle-delay 0
gsettings set org.cinnamon.desktop.screensaver lock-enabled false
gsettings set org.cinnamon.desktop.screensaver idle-activation-enabled false
gsettings set org.cinnamon.settings-daemon.plugins.power sleep-display-ac 0
gsettings set org.cinnamon.settings-daemon.plugins.power sleep-display-battery 0
gsettings set org.cinnamon.settings-daemon.plugins.power sleep-inactive-ac-timeout 0
gsettings set org.cinnamon.settings-daemon.plugins.power sleep-inactive-battery-timeout 0

The lock setting is the one that really bites. Default Mint blanks after 15 minutes and locks, so you’d walk out to a password prompt instead of a clock. Set the battery values too — a laptop with a tired battery can drop off AC without warning.

Running with the lid closed? Set HandleLidSwitch=ignore in /etc/systemd/logind.conf, or it suspends the moment you shut it.

6. Verify with an actual reboot

sudo reboot

Then leave it alone and let it come up untouched — logging in by hand invalidates the test. Expect a stretch of empty desktop while the wait loop does its job; that’s the mechanism working, not a failure.

On a 2011 Latitude E6420, measured: server healthy at 40 seconds after boot, fullscreen display at 83 seconds. The desktop login was the slow half, not Node — the server was ready a full 43 seconds before Cinnamon fired the autostart entry, so the 60-second timeout had plenty of margin.

Why Local Instead of the Hosted Site

OpenHamClock also runs instantly at openhamclock.com — no install needed, great for a quick look. A local install is worth the extra step for:

Real-World Notes
